Sheet gaskets
Effective sealing performance
Pre-cut gaskets have a fast ROI by reducing down time, maintenance time and gasket cutting waste.
We supply a complete portfolio of PTFE sheets and Graphite sheets with different reinforcements. For the correct gasket selection for your application, we provide quick and easy application consulting by telephone with Call Back Service or by eMail.

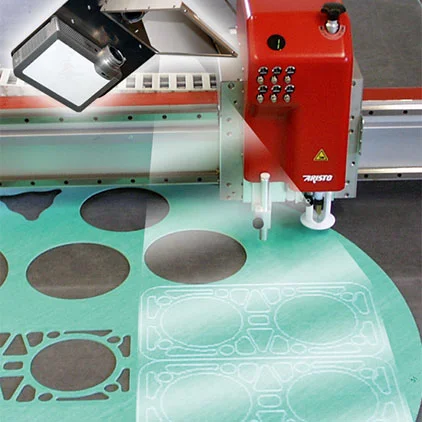

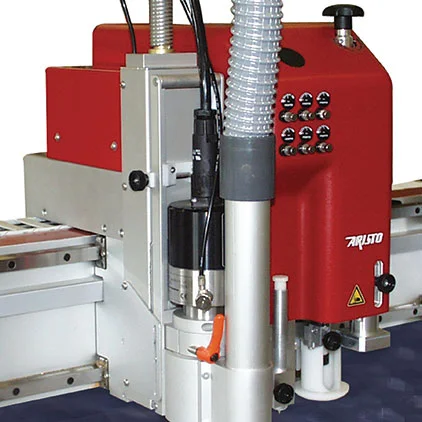

A free programmable Gasket Plotter allows to produce even complicated forms of gaskets very cost effective and in quick turn around without the costly and timely procurement of cutting tools.
Pre-production prototypes can be provided for small and high quantities.
Besides programming the cutter to the desired gasket shape and dimension, a data transfer in a DXF format and a high resolution scanner are provided.
-
Sheet Gasket
D 2.0 Allround
Standard Gasket for plant wide use with good thermal and mechanical properties as well a wide chemical compatibility; Do not use any surface treatment!
-
Sheet Gasket
D 2.3 Carbon
Standard Gasket for plant wide use with good thermal and mechanical properties as well a wide chemical compatibility; Do not use any surface treatment!
-
Sheet Gasket
D 3.4 ProFlon Blue
High sealability even at low gasket stress; Minimized cold flow; Very good recovery; High compressibility and adaptability even at slightly damaged flanges
-
Sheet Gasket
D 3.5 ProFlon Fawn
Protected against cold flow; Excellent recovery; Very good in applications with varying temperatures; Reduced leakage rates compared to other filled PTFE gaskets under the same gasket stress.
-
Sheet Gasket
D 3.6 ProFlon White
Protected against cold flow; Excellent recovery; Excellent chemical resistance in caustic applications; Reduced leakage rates compared to other filled PTFE gaskets under the same gasket stress.
-
Sheet Gasket
D 5.0 ProGraph
Soft and extremely adaptable non reinforced graphite sheet with a purity of 98 %.; Special coating on both sides raises sealabilty. ; Practically no cold flow or creep under temperature. ; Non hardening; Excellent in use at cycling temperatures; Excellent sealability even at low gasket stress.
-
Sheet Gasket
D 5.1 ProGraph
Graphite gasket reinforced with a 0.1 mm tanged 316 stainless steel insert and a purity of 98 %. ; Practically no cold flow or creep under temperature ; Excellent in use at cycling temperatures ; High blow out safety; Built in safety against assembly and operational problems.
-
Sheet Gasket
D 5.2 ProGraph
One layer of 0.05 mm stainless steel carrier (3 mm thickness 2 layers) with graphite on both sides fixed by a special 10 µm thick adhesive coating.; Purity 98 %; Practically no cold flow or creep under temperature; Excellent in use at cycling temperatures; Very good sealability even at low gasket stress.
-
Sheet Gasket
D 5.3 ProGraph
Premium graphite gasket, reinforced by 0.05 mm multilayer stainless steel carriers in an adhesive free sandwich compound with the graphite layers.; Purity 98 %; High blow out safety and mechanical strength; Practically no cold flow or creep under temperature; Non hardening; Excellent in use at cycling temperatures; Reduced Emissions due to high sealability; Built in safety against assembly and operational problems.
-
Sheet Gasket
D 5.4 ProGraph SSTC
Expanded graphite sheet gasket with Stainless Steel stretch metal reinforcement and a purity of 99 %.; Practically no cold flow or creep under temperature. ; Non hardening; Excellent in use with cycling temperatures. ; Blow out safe due to 3 dimensional reinforcement matrixes; Optimized transfer of sealing stress; Safe use even with small sealing width; Minimized risk of separation known from multilayer reinforced gasket sheets.
-
Sheet Gasket
D 5.4 ProGraph
Expanded graphite sheet gasket with Stainless Steel stretch metal reinforcement and a purity of 99 %.; Practically no cold flow or creep under temperature. ; Non hardening; Excellent in use with cycling temperatures. ; Blow out safe due to 3 dimensional reinforcement matrixes; Optimized transfer of sealing stress; Safe use even with small sealing width; Minimized risk of separation known from multilayer reinforced gasket sheets.
-
Sheet Gasket
D 5.6 ProGraph Standard
Soft and extremely adaptable non reinforced graphite sheet with a purity of 98 %.; Special coating on both sides raises sealabilty. ; Practically no cold flow or creep under temperature. ; Non hardening; Excellent in use at cycling temperatures; Excellent sealability even at low gasket stress.
-
Sheet Gasket
D 5.7 ProGraph Universal
Graphite gasket reinforced with a 0.1 mm tanged stainless steel insert and a purity of 98 %. ; Practically no cold flow or creep under temperature ; Excellent in use at cycling temperatures ; High blow out safety; Built in safety against assembly and operational problems.
-
Sheet Gasket
D 5.8 ProGraph Economy
One layer of 0.05 mm stainless steel carrier (3 mm thickness 2 layers) with graphite on both sides fixed by a special 10 µm thick adhesive coating.; Purity 98 %; Practically no cold flow or creep under temperature; Excellent in use at cycling temperatures; Very good sealability even at low gasket stress.
-
Sheet Gasket
D 5.9 ProGraph Hochdruck
Premium graphite gasket, reinforced by 0.05 mm multilayer stainless steel carriers in an adhesive free sandwich compound with the graphite layers.; Purity 99.8 %; High blow out safety and mechanical strength; Practically no cold flow or creep under temperature; Non hardening; Excellent in use at cycling temperatures; Reduced Emissions due to high sealability; Built in safety against assembly and operational problems.
-
Sheet Gasket
D 10 ProFlansch
Excellent adaption; High blow-out resistance; No cold flow; Chemically inert
